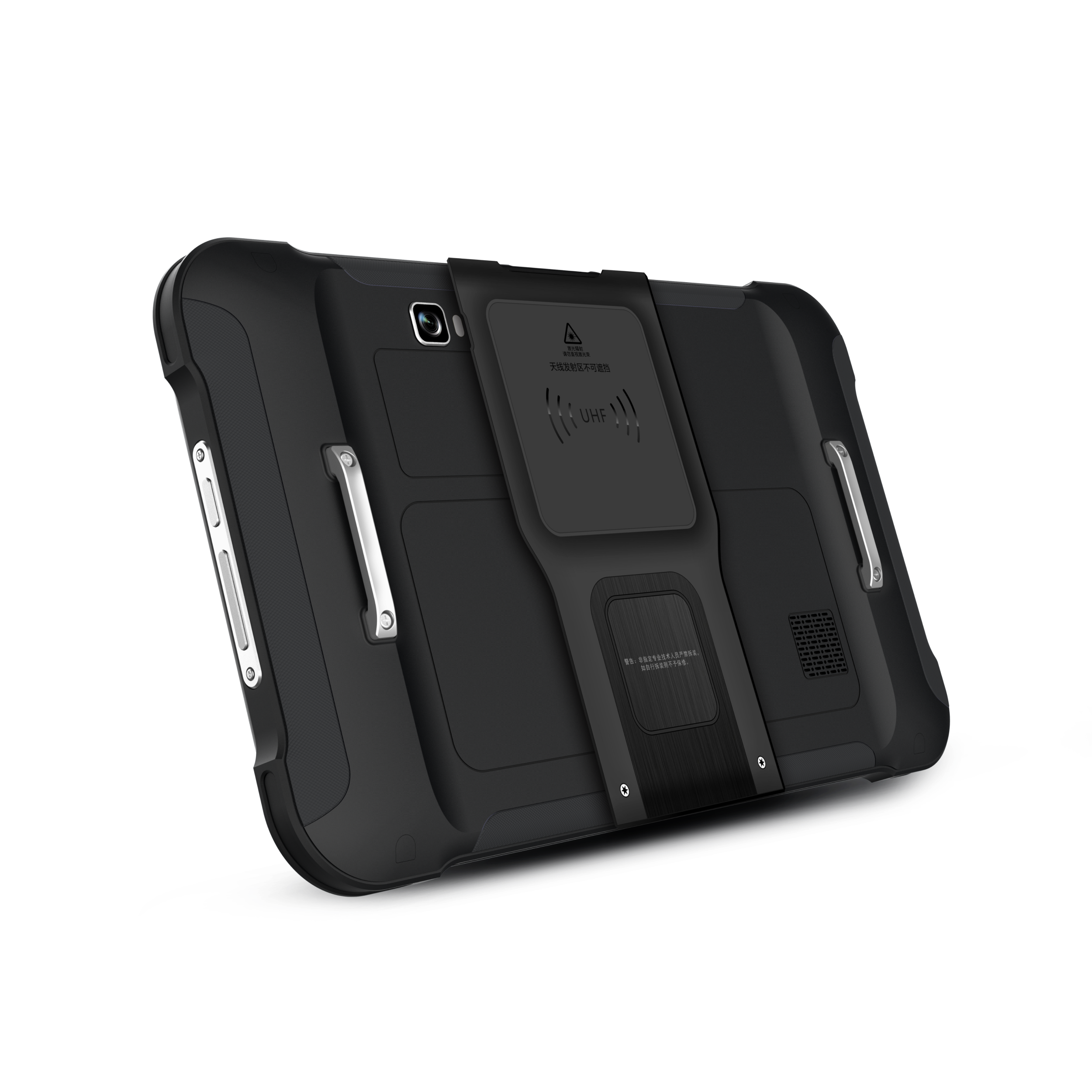

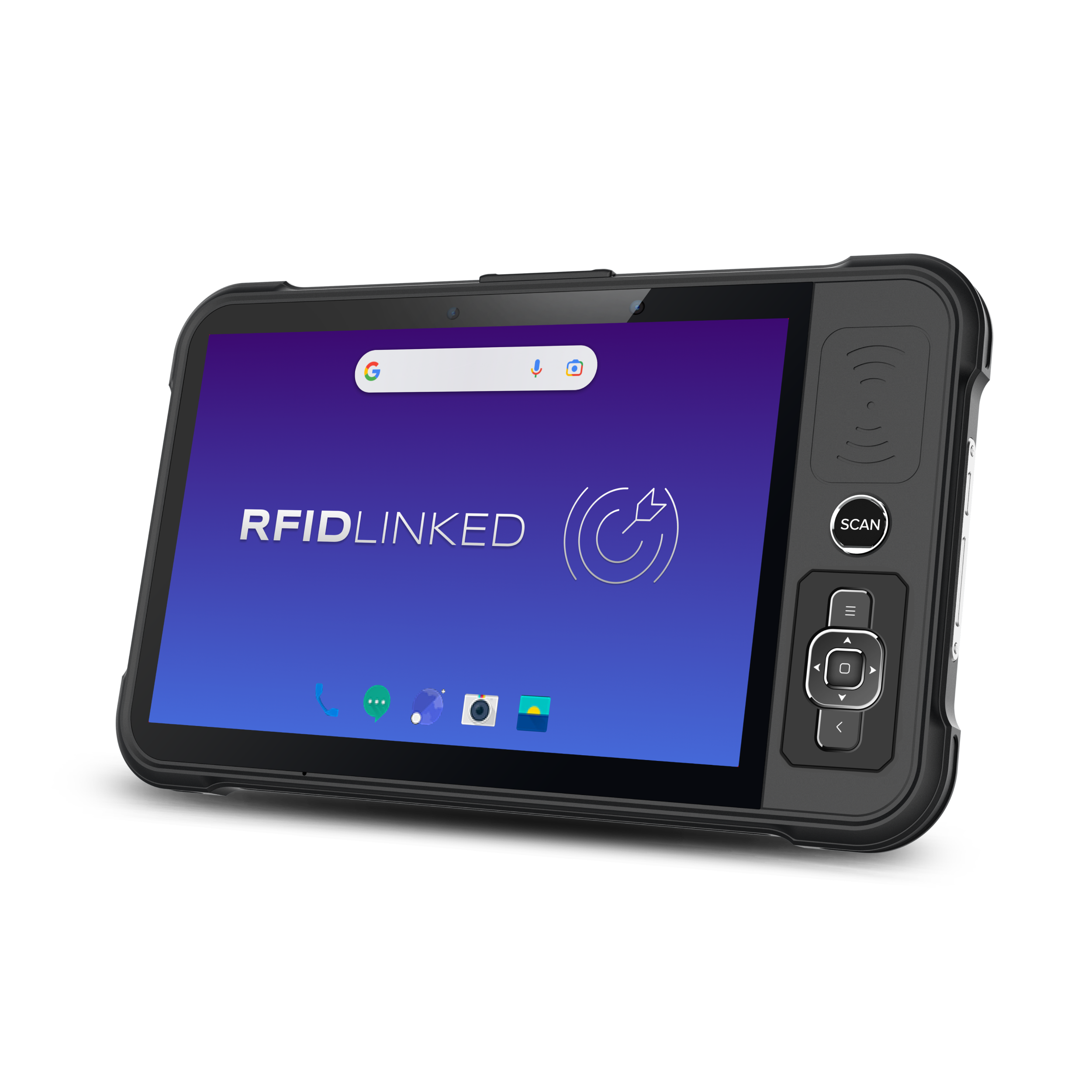

Chainway P80 RFID Tablet Scanner (Android 13)

$899.00

The Chainway P80 RFID tablet features Chainway’s top UHF RFID module using the Impinj E710 chip and supports Impinj Gen2X for excellent reading and writing. It has a reliable 8700 mAh battery for long use and a large 8-inch IPS screen with Android 13.0 OS. This RFID tablet is ideal for tasks in retail, inventory, logistics, and asset management.

  • Chainway P80 RFID Tablet

  • (1) USB-C Charging Cable

  • (1) Power Supply

The Chainway P80 RFID tablet features Chainway’s top UHF RFID module using the Impinj E710 chip and supports Impinj Gen2X for excellent reading and writing. It has a reliable 8700 mAh battery for long use and a large 8-inch IPS screen with Android 13.0 OS. This RFID tablet is ideal for tasks in retail, inventory, logistics, and asset management.

  • Chainway P80 RFID Tablet

  • (1) USB-C Charging Cable

  • (1) Power Supply

Device Specifications

  • Engine - Based on Impinj E Series chips

    Frequency - 865-868 MHz / 920-925 MHz / 902-928 MHz

    Impinj Gen2X - Supported

    Protocol - EPC C1 GEN2 / ISO18000-6C

    Antenna - Circular polarization

    Power - 1W (30dBm, +5dBm to +30dBm adjustable), 2W Optional (33dBm, for Latin America, etc.)

    Fastest Read Rate - 900+ tags/sec (Circular Polarization)

    Max Read Range - Up to 10 m (open outdoors, Impinj MR6 tag)

  • Dimensions - 250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )

    Weight - 680 g / 23.99 oz. ( for standard version )

    Display - 8'' IPS LTPS 1920 x 1200

    Touch Panel - Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

    Power - Main battery: Li-ion, rechargeable, 8700 mAh Standby: over 500 hours. Continuous use: over 10 hours (depending on user environment). Charging time: 5-7 hours (with standard AC adaptor and USB cable).

    Notification - Sound, LED indicator

    Expansion Slot - 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots

    Interfaces - USB 2.0 Type-C, OTG

    Audio - 1 microphone; 1 speaker

  • WLAN - Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6

    WWAN - 2G: 850/900/1800/1900MHz, GPRS, EDGE. 3G: CDMA EVDO: BC0.  WCDMA: B1/B2/B5/B8. 4G: TDD-LTE: B34/B38/B39/B40/B41. FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

    Bluetooth - Bluetooth 5.1

    GNSS - GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

  • CPU - Octa-core 2.0 GHz; GMS&AER

    RAM+ROM - 4 GB + 64 GB

    Expansion - Supports up to 256 GB Micro SD card

  • 2D Imager Scanner - Zebra: SE4710

    1D Symbologies - UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

    2D Symbologies - PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

  • Operating Temp - 4 °F to 122 °F / -20 °C to 50 °C

    Storage Temp - -40 °F to 158 °F / -40 °C to 70 °C

    Humidity - 5% RH - 95% RH non condensing

    Drop Specification - Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range

    Tumble Specification - 500 x 0.5 m / 1.64 ft falls at room temperature

    Sealing - IP65 per IEC sealing specifications

    ESD - ±15 KV air discharge, ±6 KV conductive discharge
