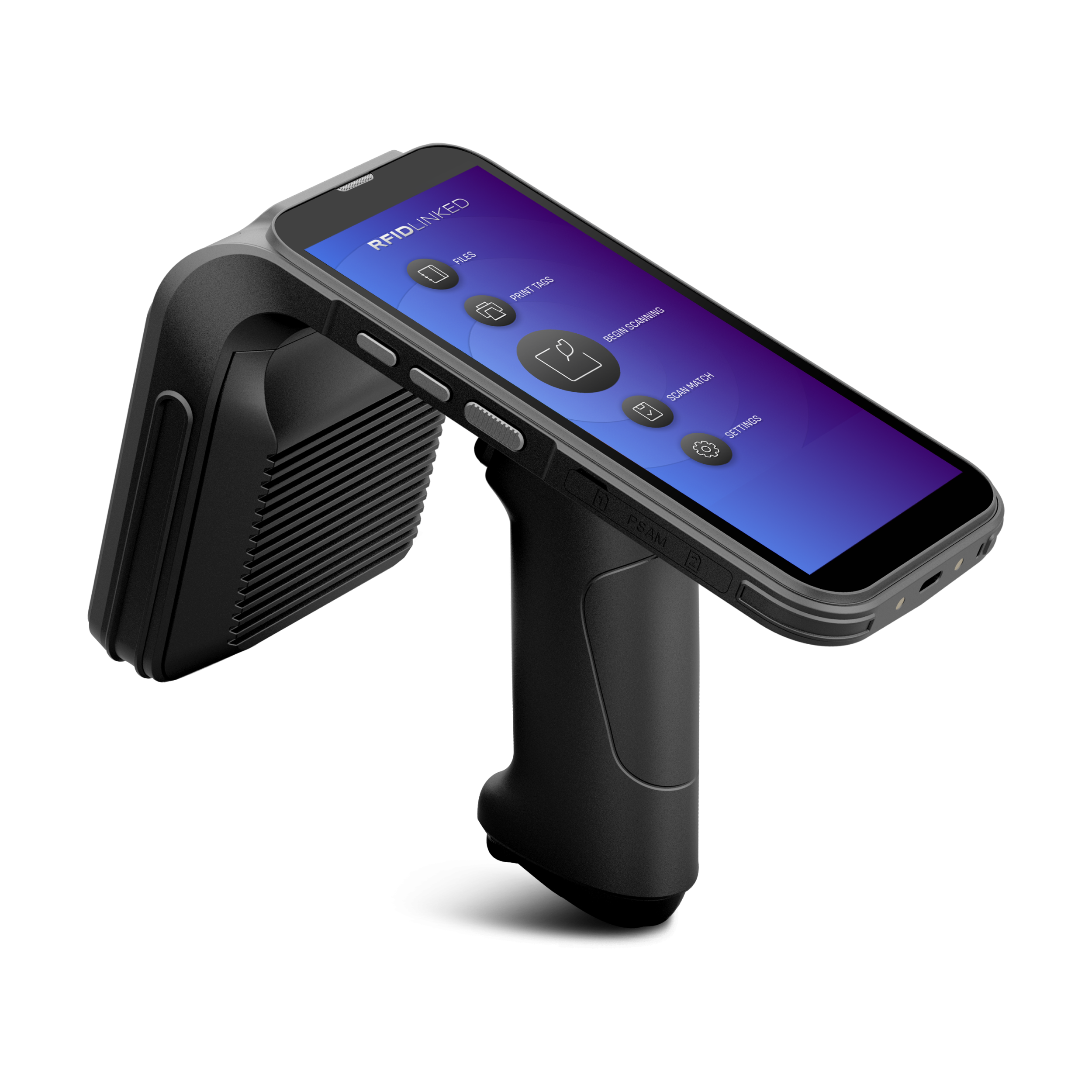

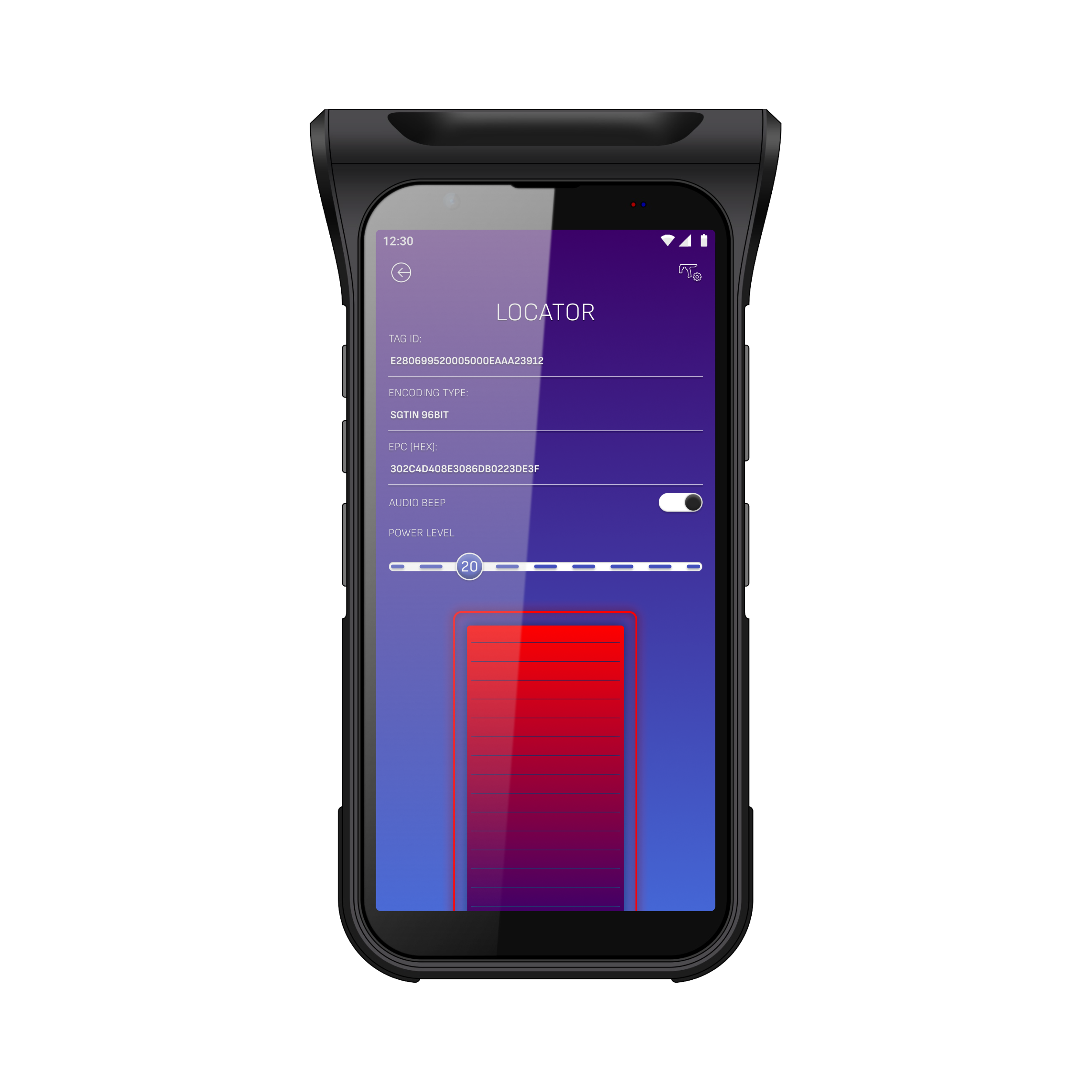

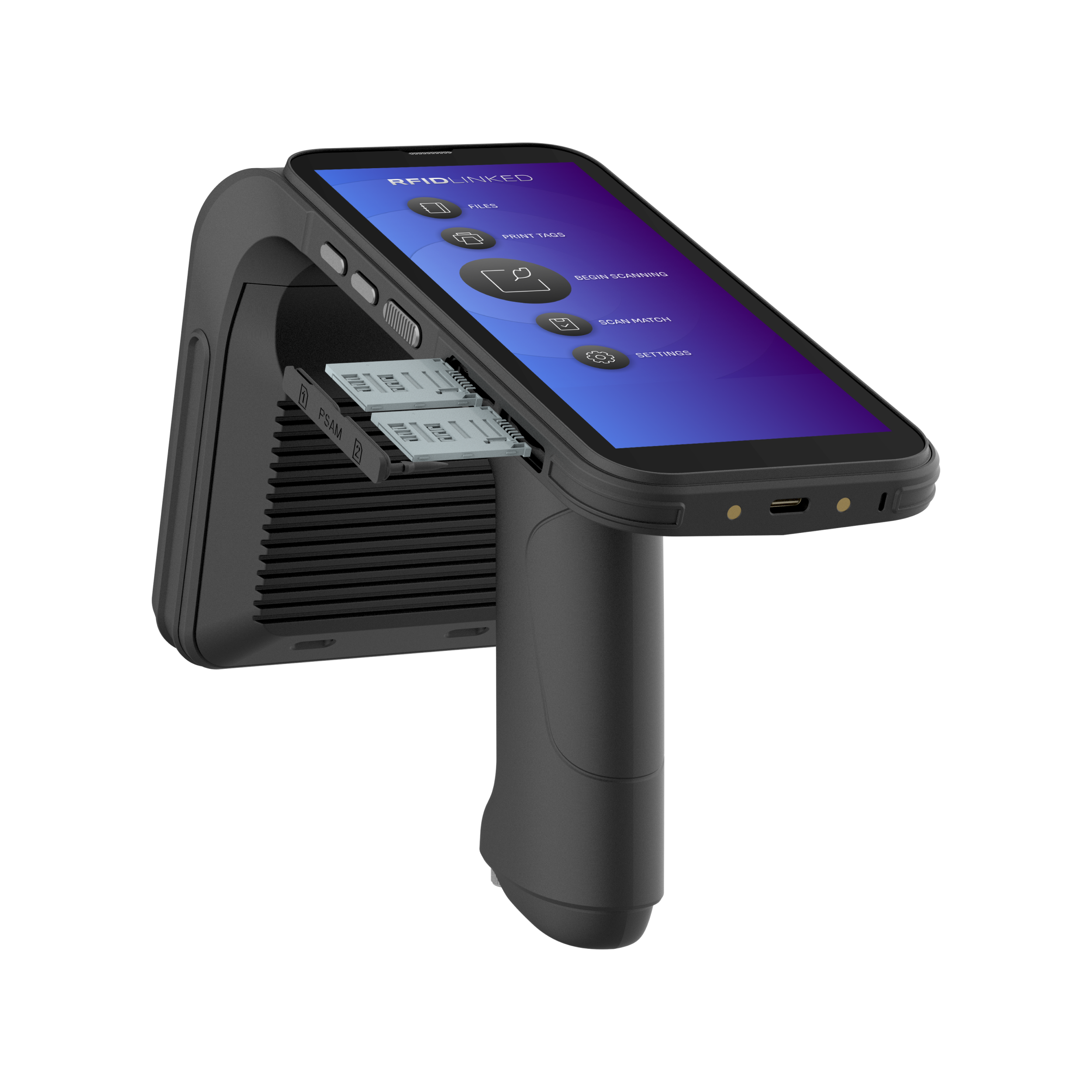

Chainway C5 RFID Scanner

$798.00

Chainway C5 is a high-performance UHF RFID reader with Impinj E710 and Gen2X support for top UHF performance. It has a sturdy integrated design for stability and durability. Running Android 11/13 with an octa-core processor, it offers optional large memory and a removable battery. It also includes 2D scanning, NFC, and fingerprint recognition, making it useful in banking, security, warehousing, retail, logistics, and more.

  • Chainway C5 RFID Pistol-Grip Tag Reader

  • (1) USB-C Charging Cable

  • (1) Power Supply

Chainway C5 is a high-performance UHF RFID reader with Impinj E710 and Gen2X support for top UHF performance. It has a sturdy integrated design for stability and durability. Running Android 11/13 with an octa-core processor, it offers optional large memory and a removable battery. It also includes 2D scanning, NFC, and fingerprint recognition, making it useful in banking, security, warehousing, retail, logistics, and more.

  • Chainway C5 RFID Pistol-Grip Tag Reader

  • (1) USB-C Charging Cable

  • (1) Power Supply

Device Specifications

  • Engine - CM710-1 module based on Impinj E710

    Frequency - 865-868 MHz / 920-925 MHz / 902-928 MHz

    Impinj Gen2X - Supported

    Protocol - EPCglobal Gen 2 (ISO18000-6C)

    Antenna - Circular polarization; 5dBic

    Power - 1W (30dBm, +5dBm to +30dBm adjustable), 2W Optional (33dBm, for Latin America, etc.)

    Fastest Read Rate - 1300+ tags/sec (Circular Polarization)

    Max Read Range - 5dBi 30m (Impinj MR6 tag, size 70 x 15mm), 32m (Impinj M750 tag, size 70 x 15mm), 33m (Alien H3 Anti-Metal tag, size 130 x 42mm)
    4dBi, 22m (Impinj MR6 tag, size 70 x 15mm), 26m (Impinj M750 tag, size 70 x 15mm), 27m (Alien H3 Ant

  • Dimensions - 177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in

    Weight - 626g / 22.08oz. (device with battery)

    Display - 5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080

    Touch Panel - Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass

    Power - 6700mAh / 13400mAh removable pistol battery. Built in 100mAh backup battery, supporting battery hot swap

    Notification - Sound, LED indicator, vibrator

    Interfaces - USB 2.0 Type-C, OTG, Type-C headphones supported

    Card slot - 2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

    Audio - 1 microphone; 1 speaker; 1 receiver

    Keypad - 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)

    Sensors - Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

  • WLAN - 802.11 a / b / g / n / ac, 2.4G / 5G dual-band antenna

    WWAN - 2G: GSM (B2 / B3 / B5 / B8). 3G: WCDMA (B1 / B2 / B4 / B5 / B8). CDMA2000 ECDO: BC0. 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41

    Bluetooth - Bluetooth 5.0

    GNSS - GPS / AGPS, GLONASS, BeiDou, Galileo

  • CPU - Octa-core, 2.3GHz

    RAM+ROM - 3GB + 32GB / 4GB + 64GB (optional)

    Expansion - Supports up to 256GB Micro SD (TF) card

  • 2D Imager Scanner - Zebra: SE4710

    1D Symbologies - UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.

    2D Symbologies - PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

  • Operating Temp - 4 °F to 122 °F / -20 °C to 50 °C

    Storage Temp - -40 °F to 158 °F / -40 °C to 70 °C

    Humidity - 5% RH - 95% RH non condensing

    Drop Specification - Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range

    Tumble Specification - 1000 x 0.5 m / 1.64 ft. falls at room temperature

    Sealing - Host IP65 per IEC sealing specifications

    ESD - ±15 KV air discharge, ±6 KV conductive discharge
